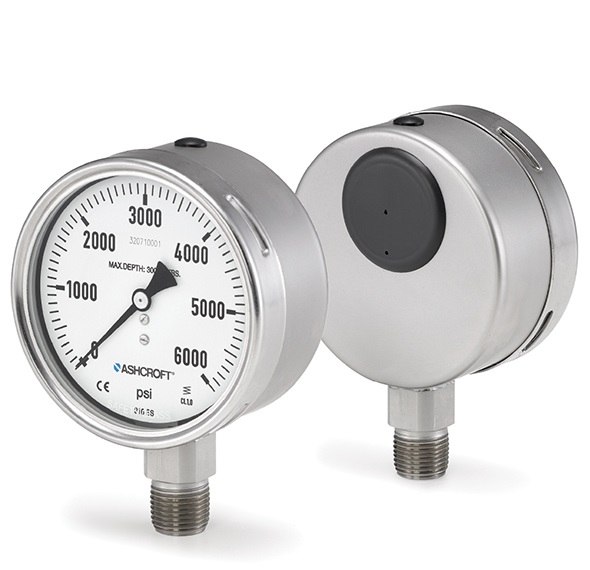

SC Subsea Pressure Gauge
The Ashcroft®SC subsea pressure gauge provides exceptional durability for undersea environments. The fully-welded measurement system and materials of construction assures ensures reliability and corrosion resistance, while the various sizes and mounting serve many installation points to depths of 6,000 meters.
Key Features:
- Depths to 2,500 meters
- 100% Liquid Filled (Glycerin)
- Compensated Case
- Bayonet Lock Ring
- 316L stainless steel case and wetted material
- Corrosion resistant construction
应用程序:
Process Markets:
Offshore
Specialized Deep Depth Equipment
Hyperbaric Conditions
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±1% of span
Size
100 mm
Process Connection Size
1.2 NPT or BSP
Process Connection Location
Lower, Back
Pressure Ranges
15 psi to 20,000 psi
Case Style
Open Front
Weather Protection
IP68
Mounting
flush
Stem, Surface
Movement
Non adjustable
