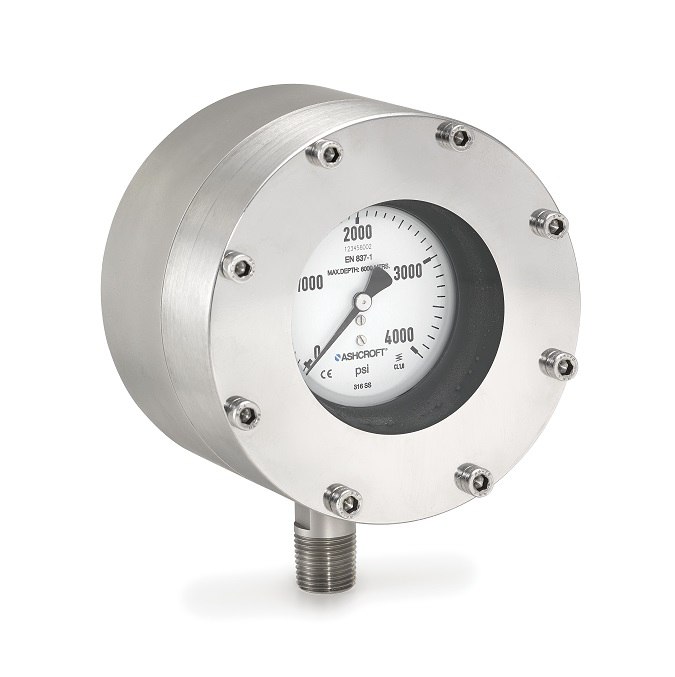

年代B Subsea Pressure Gauge
The Ashcroft®年代B subsea pressure gauge provides exceptional durability for undersea environments. The fully-welded measurement system and materials of construction assures ensures reliability and corrosion resistance, while the various sizes and mounting serve many installation points to depths of 6,000 meters.
Key Features:
- Depths to 6,000 meters
- Rugged construction for extreme undersea environments
- 年代olid drilled, bar stock cases
- 316L stainless steel wetted material and case
- Corrosion resistant construction
应用程序:
Process Markets:
Offshore
年代pecialized Deep Depth Equipment
Hyperbaric Conditions
年代pecifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±1.0% of span (100, 140, 160mm)
±1.6% of span (63mm)
过程连接尺寸
NPT or BSP: 1⁄4 ̋ (63mm), 1⁄2 ̋ (100, 140, 160mm)
Process Connection Location
Lower, Back
Pressure Ranges
15 psi to 15,000 psi (63mm) 90 psi to 20,000 psi (100mm, 140mm, & 160mm)
Case Style
Open Front
Weather Protection
IP68
Mounting
flush
年代tem, Surface
Movement
Non adjustable
年代ize
100 mm, 140 mm, 160 mm
63 mm
