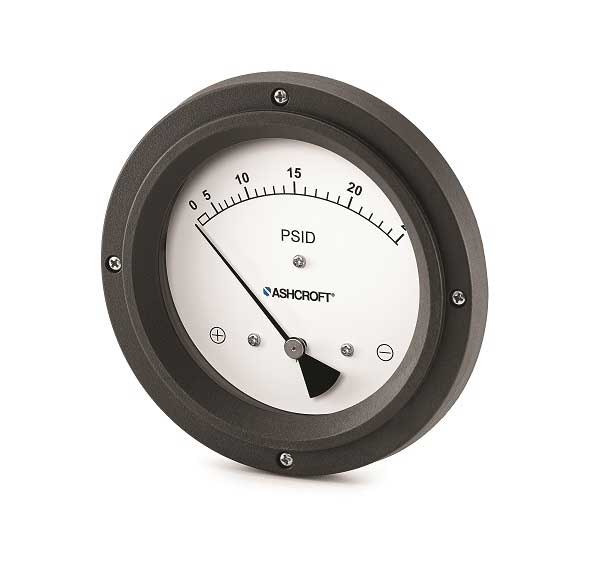

1141 Differential Pressure Gauge
The Ashcroft®1141 gauges are a very economical option for measuring differential pressure and where no media migration is permissible. Uses a rolling diaphragm design and can be utilized with compatible fluids or gases at high static pressures and where temperature fluctuations may cause readability concerns due to condensation.
Key Features:
- Glass filled nylon case
- Easily removable window for wipe-down
- Direct mount or panel mount as standard
- High static pressure capability of 3,000 psi
- 年代uperior magnets for smoother pointer motion
- Reed switches (optional) for direct system control
应用程序:
Process and Industrial Market:
Condition Monitoring across Heat Exchange
Filtration Monitoring
流量测量
Leak Detection
年代pecifications
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Window
Glass
Dial/Case
2½˝, 4½˝, 6˝
Process Connection Location
In-line, Lower, back
Case Style
Open front case (Although pressure chamber is designed separate from the case which allows the product to perform as a Solid Front)
Weather Protection
IP65
Max. Process Temperature
175°F (80°C)
年代tatic Pressure
3,000 psid
Mounting
Direct, Panel (STD.), Pipe Mount, Surface Mount (OPT.)
Wetted Material
年代tainless steel, Aluminum or Brass with Buna, Viton or EPDM O-rings/Diaphragm
Process Connection Size
¼ NPT Female (STD.), 1⁄8 NPT or ½ NPT Female, Adapter (OPT.)
Accuracy
±2% ascending pressure full scale differential
Pressure Ranges
0 - 5 psid to 100 psid
