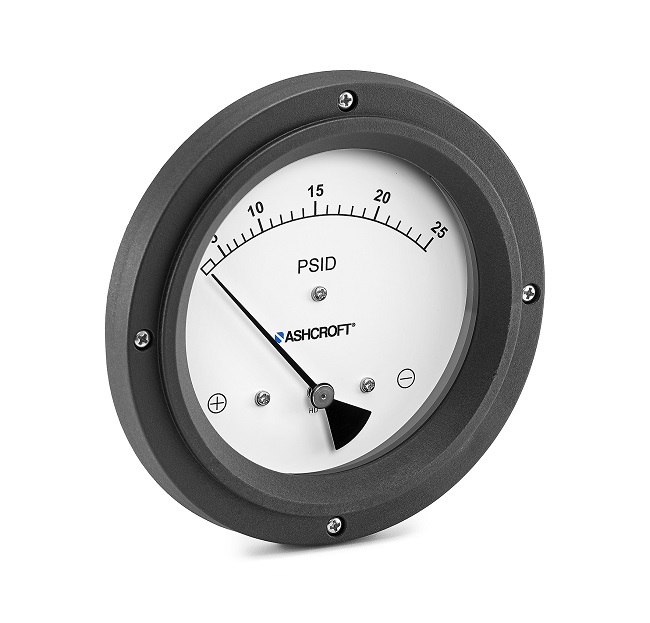

1142 Differential Pressure Gauge
The Ashcroft®1142 gauges are a very economical option for measuring differential pressure and where no media migration is permissible. Uses a convoluted diaphragm design and can be utilized with compatible fluids or gases with ranges as low as 1 psid (.075 bar) and where temperature fluctuations may cause readability concerns due to condensation.
Key Features:
- Glass filled nylon case
- Easily removable window for wipe down
- Direct mount or panel mount as standard
- High static pressure capability of 1,500 psi
- Superior magnets for smoother pointer motion
- Reed switches for direct system control (optional)
应用程序:
Process and Industrial Market:
Liquid Level Measurement
Filtration Monitoring
Flow Measurement
Leak Detection
Specifications
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±2% ascending pressure full scale differential
Window
Glass
Pressure Ranges
0-1 thru 0-60 psid
Dial/Case
2½˝, 4½˝, 6˝
Static Pressure
1,500 psi
Process Connection Size
¼ NPT Female (STD.), 1⁄8 NPT or ½ NPT Female, Adapter (OPT.)
Process Connection Location
In-line, Lower, back
Case Style
Open front case (Although pressure chamber is designed separate from the case which allows the product to perform as a Solid Front)
Max. Process Temperature
175°F (80°C)
Mounting
Direct, Panel (STD.), Pipe Mount, Surface Mount (OPT.)
Weather Protection
IP65
Wetted Material
Stainless steel, Aluminum or Brass with Buna, Viton or EPDM O-rings/Diaphragm
