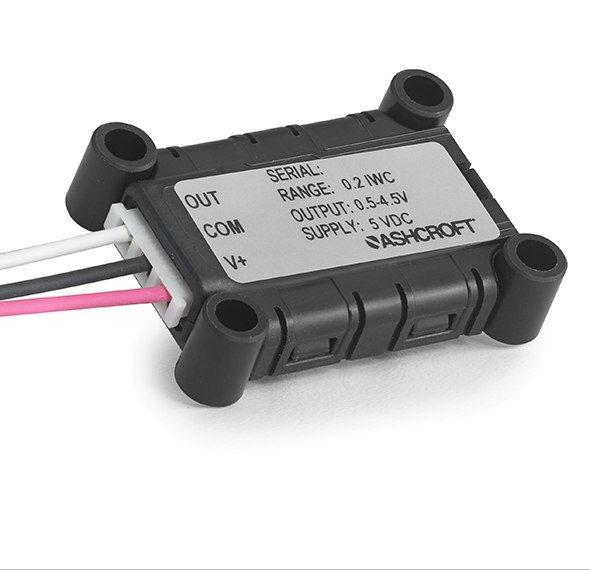

AXLdp Differential Pressure Transducer
The Ashcroft®AXLdp is perfect for OEM systems that require an ultra-low differential pressure sensor that can be PC board mounted. With the exclusive Ashcroft Si-Glas™variable capacitance sensor, the budget-friendly AXLdp delivers highly sensitive and repeatable pressure measurements and provides exceptional long term stability.
Key Features:
- UL94-V0 rated PBT case
- Calibrated ratiometric output
- Low voltage power requirement
- Through holes allow for easy mounting to PC boards
- Ranges available down to +/- 0.1 in. H2O
- Compact design
- Good overpressure protection
- CE Mark standard
应用程序:
Process Applications:
Flow Measurement
Room Monitoring
Energy Management
HVAC and VAV
Fume Hood Control
Fan Tracking
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
70°F ±2°F (21°C ±1°C)
Accuracy
±2.0%, ±1.0% of span (Terminal Point Method: includes non-linearity, hysteresis, non-repeatability, zero offset and span setting errors)
Stability
≤±0.50% span/year at reference conditions
Pressure Connection
3mm tube stube
Pressure Ranges
Bidirectional: ±0.10 in H2O to ±10.00 in. H2O
Unidirectional: 0.20 in. H2O to 20.00 in. H2O
Wetted Material
Media: Clean, dry air/gases compatible with Silicon, Glass, Gold, Titanium, Ceramic, Silicone Rubber, Aluminum and PBT. NOT FOR USE WITH LIQUIDS
Non-Wetted Materials
Housing: PBT (meets UL94-VO)
Outputs
(10% to 90% of the supplied voltage) 0.5 to 4.5 V with a 5 Vdc supply
Enclosure Ratings
IP20
NEMA 1
Mounting
Circuit board mountable
