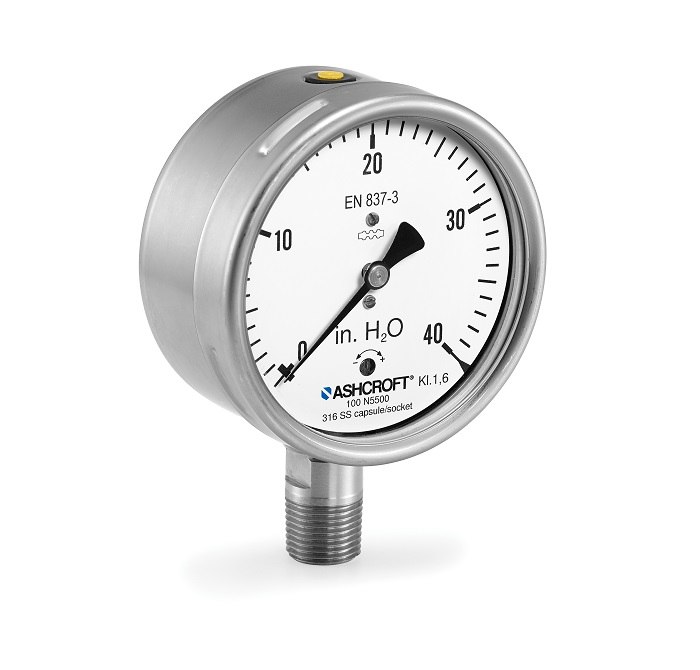

N5500 Low Pressure Capsule Gauge
The Ashcroft®N5500 stainless steel capsule pressure gauge provides a dependable option for low pressure measurement for gases and dry process media applications. The N5500 is well suited to handle both indoor and outdoor installation requirements.
Key Features:
- All-stainless steel movement
- Overpressure protection up to 10 times full scale (option)
- Socket welded to the case
应用程序:
Process Markets:
Oil & gas
Chemical and Petrochemical
Air Conditioning
Food and Beverage
Vacuum Pumps
Gas Measurement, Burners
Leak Detection
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±1.6% of span
1% of span (OPT.)
Size
100 mm, 160 mm
Process Connection Size
¼ NPT Male, 3⁄8 NPT Male, ½ NPT Male, G ¼ B Male, G 3⁄8 B Male, G ½ B Male
Process Connection Location
Lower, Back
Pressure Ranges
vacuum, compound, 6 IW to 250 IW
Case Style
Open Front
Window
Glass (STD.), Safety Glass, Acrylic (OPT.)
Weather Protection
IP54, IP65 if vent valve closed (acc. to EN 60 529/IEC 529)
Mounting
flush
Stem, Surface
Dampening
Dampeners, capillary and snubbers
