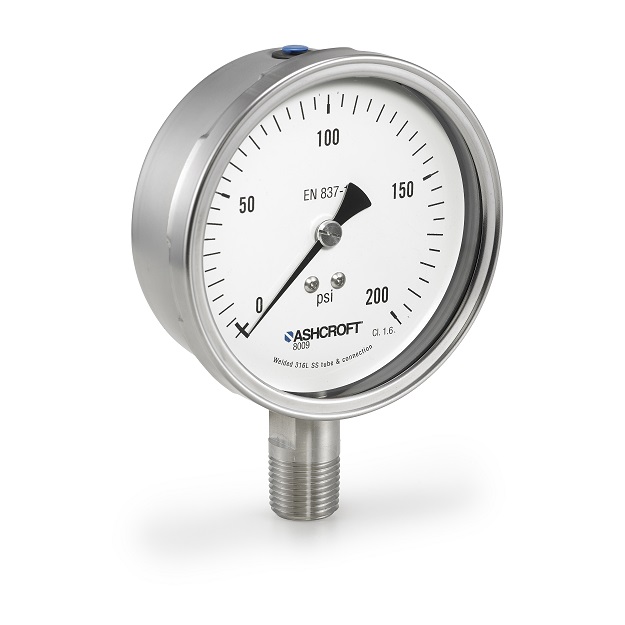

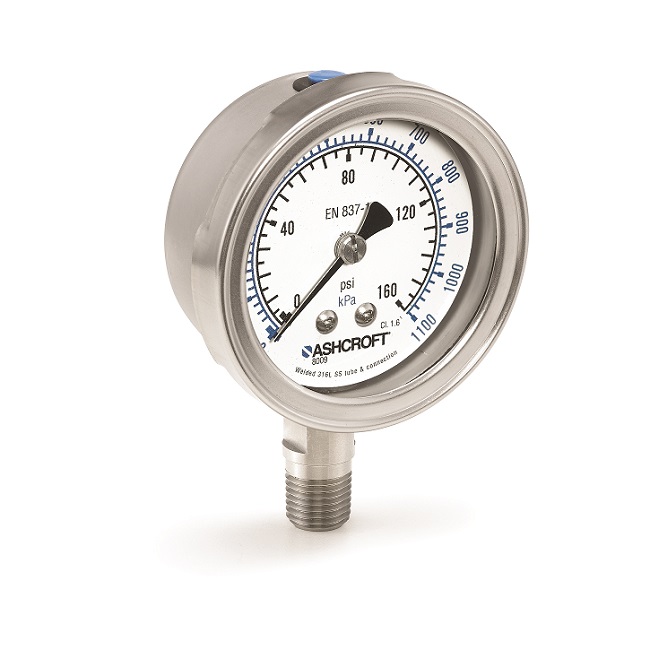

8009S Pressure Gauge
The Ashcroft®8009S delivers the advanced features of a larger gauge in a small, economical package for applications requiring an all stainless steel instrument for harsh environments. Laser welded wetted 316L stainless steel components ensure system integrity for corrosive medias. The removable bayonet ring allows the user easy access for minor adjustments.
Key Features:
- R110 and NGV 3.1 approvals
- FlutterGuard™standard on dry gauges
- Extensive offering of process connection locations and ranges
- Economical solution when all stainless gauges are required
- Designed to meet MSL Helium leak test of 1 x 10-6 scc/s
- Meeting EN837-1 and ASME B40.100 specifications allows for international use
一个pplications:
Industrial Markets:
- Hydraulic systems
- Food and beverage
- Compressors and pumps
- Irrigation equipment
- Refrigerant applications
- Compressed (CNG) and Liquified (LNG) natural gas applications
- Hydrogen Cell/ H2一个pplications
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
一个ccuracy
63 mm: ±1.6% of span per EN837-1, ±1% of span per EN837-1 (thru 10,000 psi), ±2-1-2% of span ASME B40.100 (thru 10,000 psi)
100 mm: ±1% of span per EN837-1 (thru 10,000 psi), ±1.6% of span per EN837-1
Size
63 mm (2½ ̋), 100 mm (4 ̋)
Pressure Ranges
Vacuum, compound to 20,000 psi
Process Connection Location

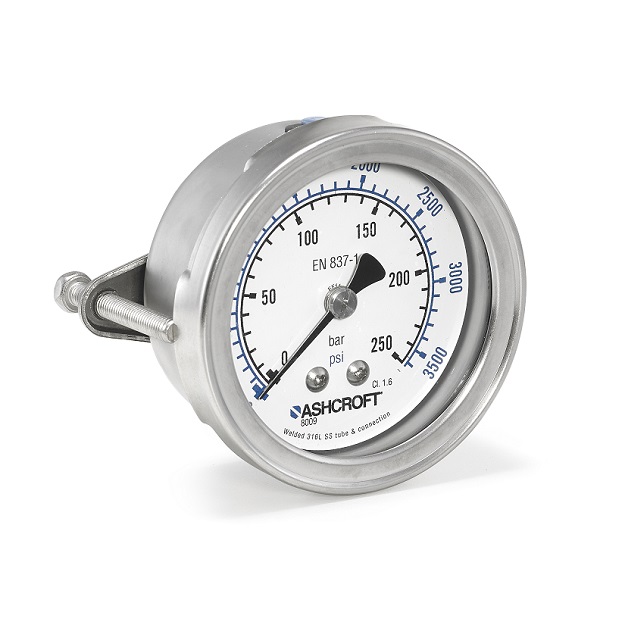

Lower, center back or lower back
Process Connection Size
63mm: 1⁄8 NPT, ¼ NPT, G¼ B, ¼ BSPT, SAE-4 7⁄16-20, M14x1.5, #4JIC, ¼ Tube stub Male, 3⁄8 Tube stub Male, ½ Tube stub Male
100mm: ¼ NPT, ½ NPT, G¼ B, G½ B, M14x1.5, M20x1.5, ¼ BSPT, ½ BSPT, ¼ Tube stub Male, 3⁄8 Tube stub Male, ½ Tube stub Male, ¼ High pressure Female
Process Connection Material
316 Stainless steel
Movement
316 stainless steel Laser Welded
Window
Glass
Polycarbonate
Safety Glass
Dampening
FlutterGuard™
Glycerin fill
Silicone fill
Weather Protection
IP66 rating: NEMA 4X for water and dust ingress
Case Material
304 Stainless Steel
316 Stainless steel
Ring Style
Bayonet
