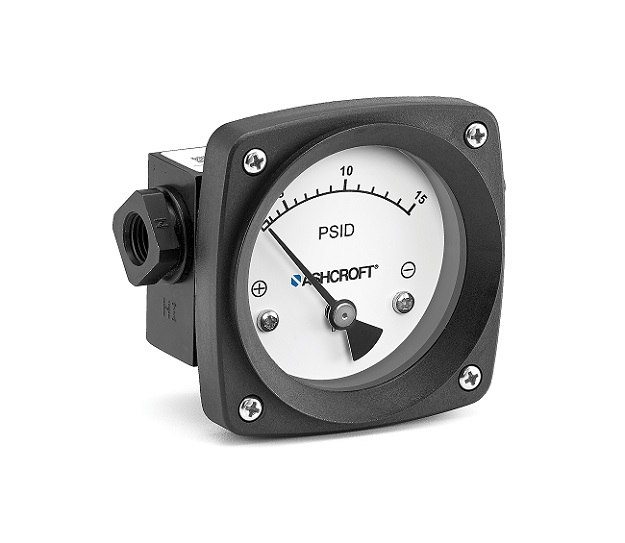

1140 Differential Pressure Gauge
The Ashcroft®1140 gauges are ideal for measuring differential pressure in applications where media migration may be acceptable such as lubrication, flow monitoring and tank level where temperature fluctuations may cause readability concerns due to condensation.
Key Features:
- Glass filled nylon case
- Easily removable window for wipe-down
- Direct mount or panel mount as standard
- High static pressure capability (up to 6,000 psi)
- Reed switches (optional) for direct system control
- Superior magnets for smoother pointer motion
应用程序:
Process and Industrial Market:
Filtration Monitoring
Pressure Drop across a Strainer
Flow Rate
Specifications
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Window
Glass
Dial/Case
2½˝, 4½˝, 6˝
Process Connection Location
In-line, Lower, back
Case Style
Open front case (Although pressure chamber is designed separate from the case which allows the product to perform as a Solid Front)
Weather Protection
IP65
Max. Process Temperature
175°F(80°C)
Static Pressure
Up to 6,000 psid
Mounting
Direct, Panel (STD.), Pipe Mount, Surface Mount (OPT.)
Wetted Material
Stainless steel, Aluminum or Brass with Buna, Viton or EPDM O-rings/Diaphragm
Process Connection Size
¼ NPT Female (STD.), 1⁄8 NPT or ½ NPT Female, Adapter (OPT.)
Accuracy
±2% ascending pressure full scale differential
Pressure Ranges
0-5 psid to 150 psid
