High-purity applications require a particular type ofpressure gaugeto ensure accuracy, safety and repeatability. The materials from which it’s made and its safety features must be specialized for demanding environments.
Do you have the right high-purity pressure gauge for your process? Do you need enough space to have multiple devices measuring your process?

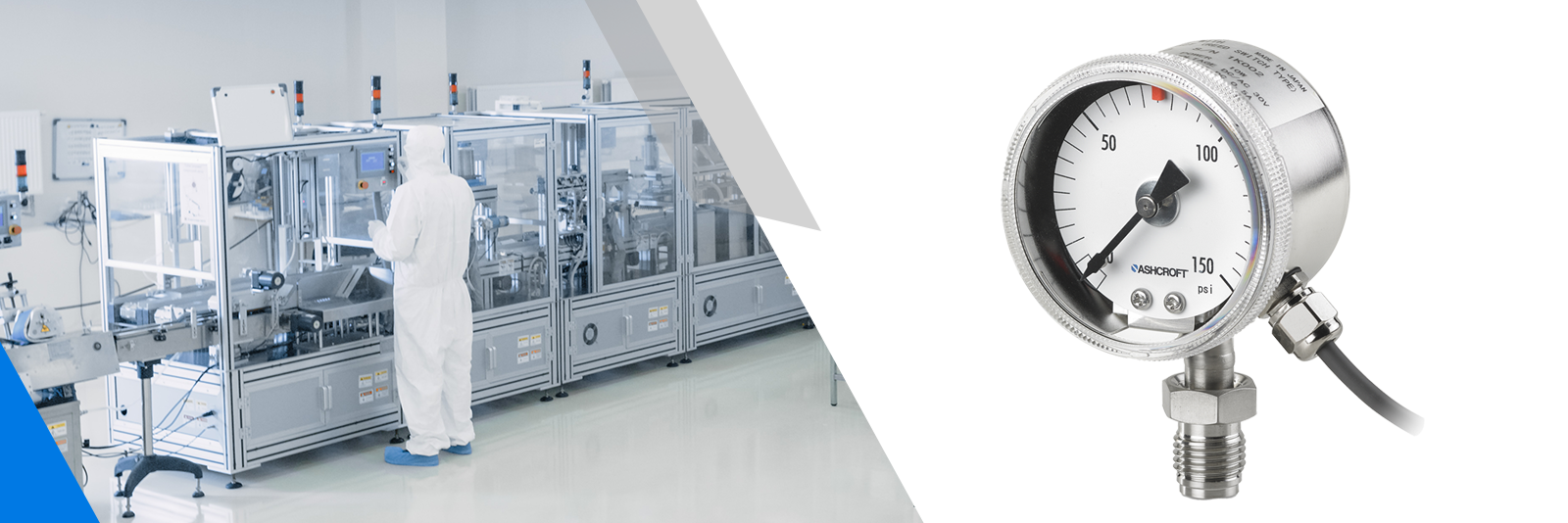

Ashcroft’s newly releasedHPS high-purity pressure gauge with reed switchmight be right for you. This article will describe the features of this new gauge and how it can help keep your application, and business, running.
Important Features
The Ashcroft 50 mm HPS high-purity pressure gauges with reed switch are ultrasonically cleaned to provide exceptional quality and reliability in ultra-high-purity gas delivery systems. Its stainless-steel construction and wetted components are ideal for use with industrial gases in semiconductor and electronic manufacturing.
The reed switch capability provides an additional safety feature by actuating an internal switch that triggers an alarm or a process condition change. Thishigh-purity pressure gaugeis an ideal choice for reducing installation costs and providing an added space reduction benefit.
It also has a number of other features that make this gauge stand out:
- 316L Stainless steel wetted parts
- Helium leak tested to 1 x 10-8scc/s
- Cleaned in class 10,000 cleanroom
- Packed in a Polyethylene-sealed bag after nitrogen gas flushing
Materials
This gauge case is made from 304 stainless steel and the bourdon tube/process connection is 316L stainless steel.
Specifications
Ranges:
0to 60 psi
0to 3,000 psi
Process Connection:
¼ Male or female VCR type (9⁄16-18UNF)
R ¼ Male, ¼ NPT Male
Gauge Accuracy:
± 1.6% of span
Reed Switch Setting Accuracy:
± 5.0% of span
Reed Switch Specifications:
Maximum Power: 10 W
Maximum Voltage: 30V AC/DC
Maximum Current: 0.5A DC
Dead Band: Within 10% of span
Industries and Applications
This product is ideal for applications including:
- High-Purity Gas Delivery Systems
- Gas Sticks
- Process Gas Analyzers
- 半导体
- Cylinder Cabinet
- Exhaust gas for CVD and etching equipment
Pros and Cons
这些压力表的一些其他好处s are the ultraclean design and packaging, and the seven-digit serialized dial. They’re also 100% Helium leak tested.
Should not be used in ultrapure water applications, chemical delivery systems, and any corrosive fluid application. This product is created for the gas portion of the semiconductor process.
Wrap-Up
The HPS pressure gauge with reed switch by Ashcroft is a great optionfor your high-purity applications.The stainless-steel construction and reed switch safety feature make it a reliable and safe choice for your most challenging applications.
Check out thedata sheetfor all the specs and more information on this new gauge.
